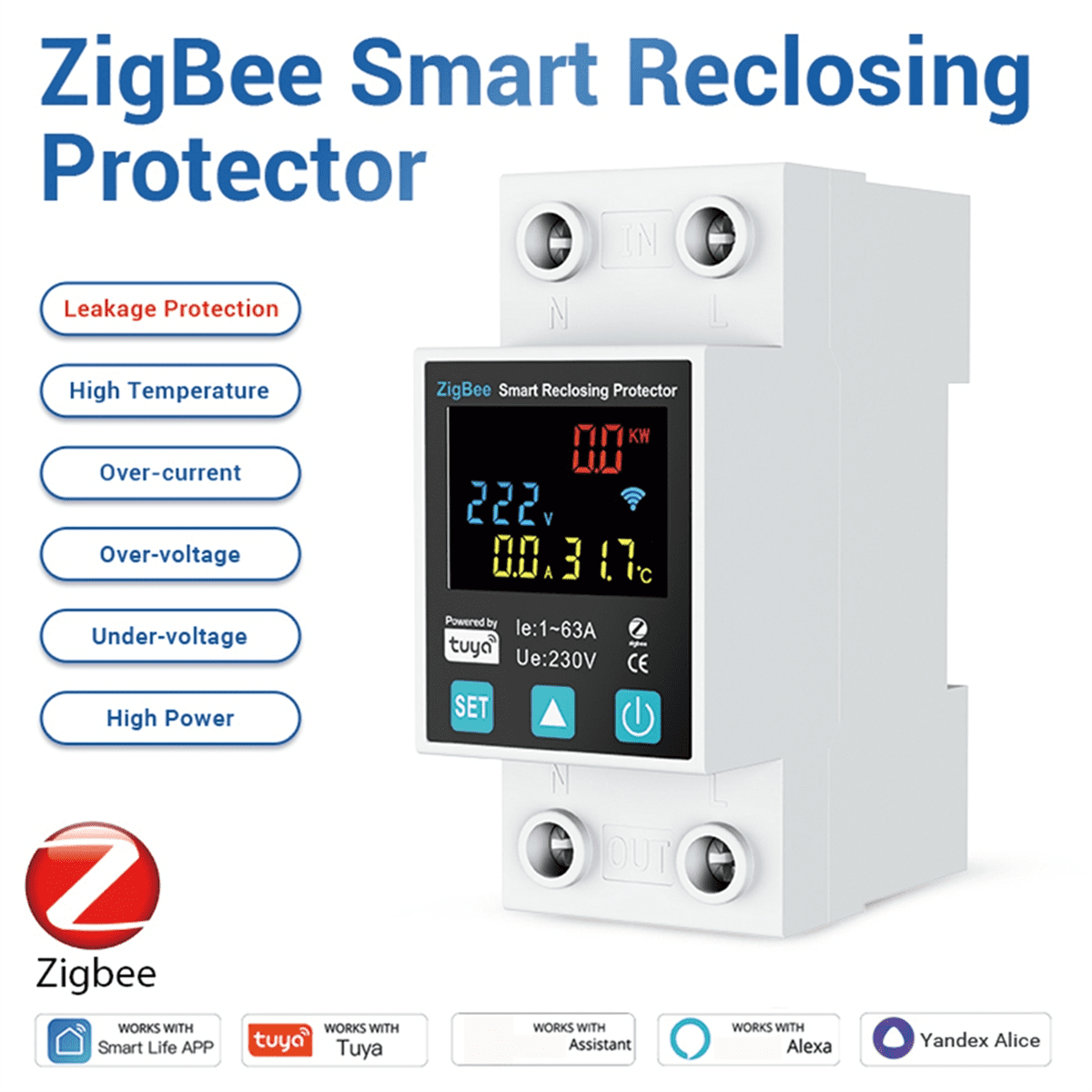

ZigBee TUYA Smart Life 2P/63A Circuit Breaker Earth Leakage over Under Voltage Protection Protector Relay Energy Meter,1 x Circuit breaker,White

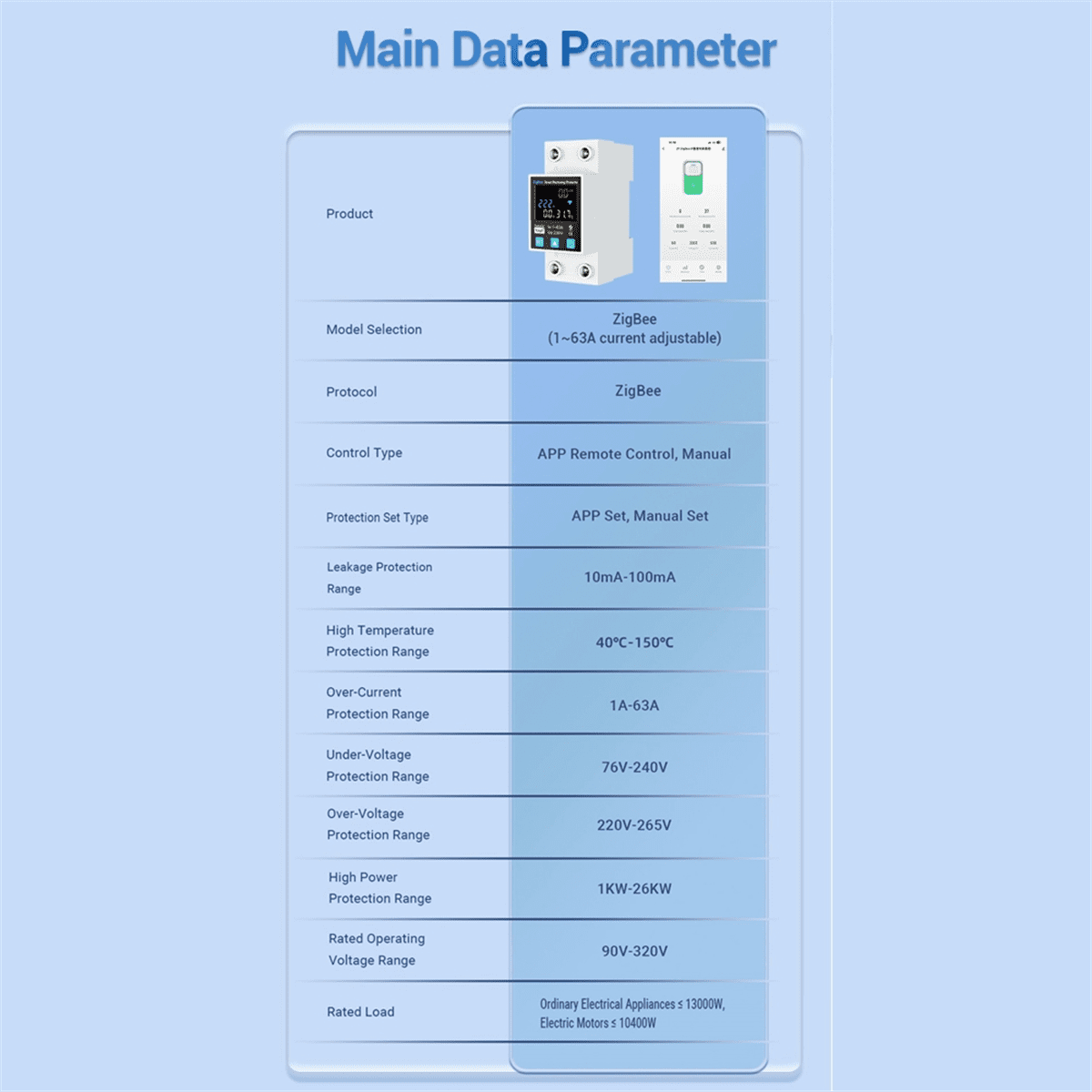

Note:<br>1.The Zigbee Smart Circuit Breaker must be successfully added to the app through a Tuya Zigbee hub/gateway, and the device can be controlled through a mobile phone<br>2.Power must enter from the top and must be a live line + neutral (L+N)<br>3.This product does not have isolating function and short circuit protection function, and requires a circuit breaker to be configured at the upper part for use.<br><br>Note:<br>lf your voltage is 110VAC, the protector over voltage protect when you first time use.<br>Function:<br>Protocol: ZigBee<br>Control mode: APP remote control, manual<br>Protection setting method: APP setting, manual setting<br>Temperature protection:40-150°C(adjustable)<br>Power protection:1KW-26KW(adjustable)<br>Over current protection:1A-63A (adjustable)<br>Over voltage protection:220V-265V (adjustable)<br>Under voltage protection:76V-240V (adjustable)<br>Electric leakage protection: 10mA-100mA(adjustable)<br>Rated working voltage range: 90V-320V<br>working voltage: 100-240V AC<br>Rated load: ordinary electrical appliances ≤13000W, motor ≤10400W<br>poles description: 1P+N (N pole pass-through), occupy 2P<br>other features: with metering function, leakage protection<br>control type: manual control/app remote control<br>alarm&amp;protection setting type: manual setting/app setting<br>protocol: ZigBee 3.0(Wi-Fi 2.4GHz)<br>app: "Smart Life"APP,"Tuya Smart"APP<br>voice speakers: for , for Assistant, for Yandex etc.<br>The actual object may have color difference due to different light or display<br>Color: White<br>Material: Plastic<br><br>Package Contents:<br>1 x Circuit breaker<br><br>Only the above package content, other products are not included.<br>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

• Note:
• 1.The Zigbee Smart Circuit Breaker must be successfully added to the app through a Tuya Zigbee hub/gateway, and the device can be controlled through a mobile phone
• 2.Power must enter from the top and must be a live line + neutral (L+N)
• 3.This product does not have isolating function and short circuit protection function, and requires a circuit breaker to be configured at the upper part for use.
